Project Description
CF 42

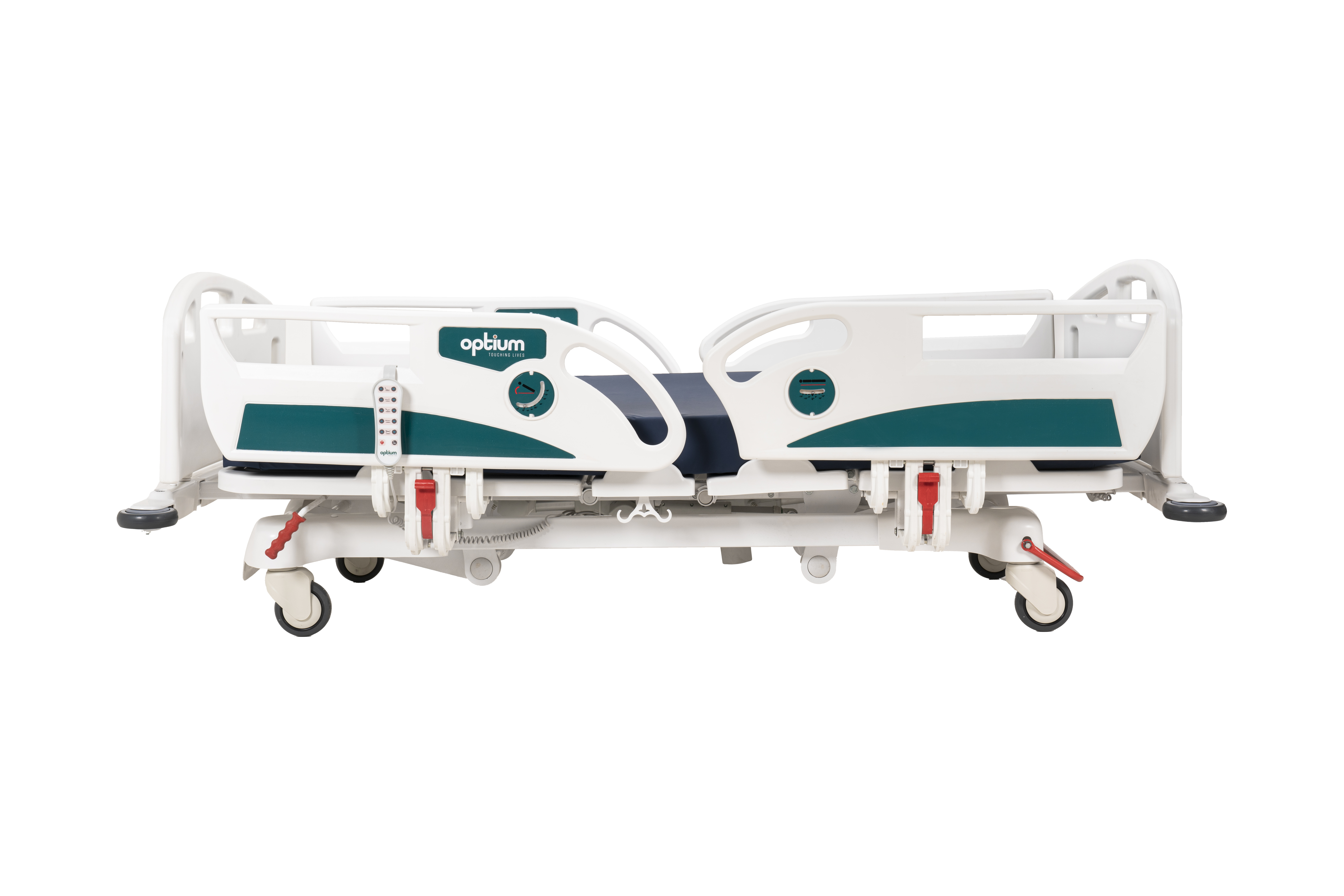

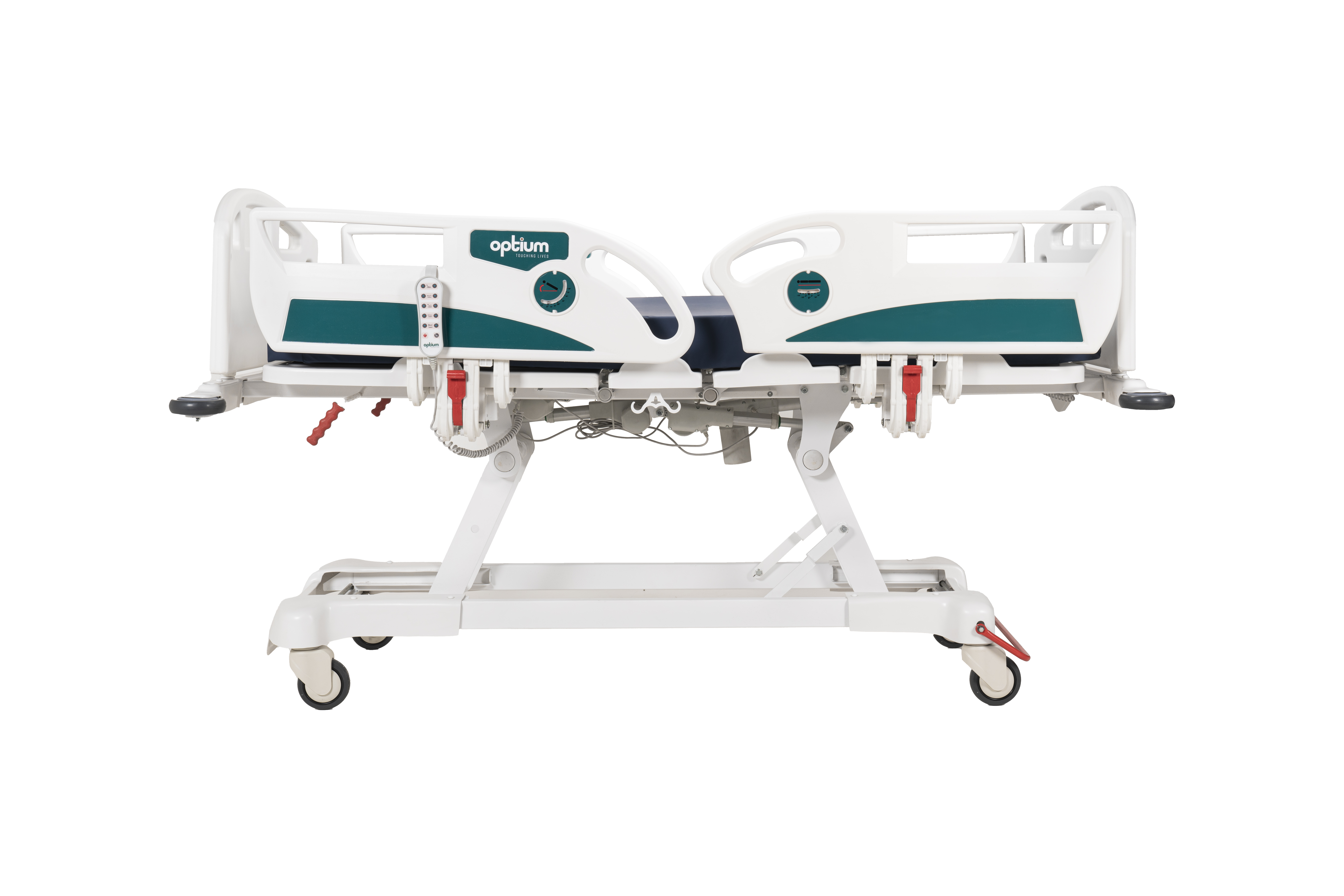

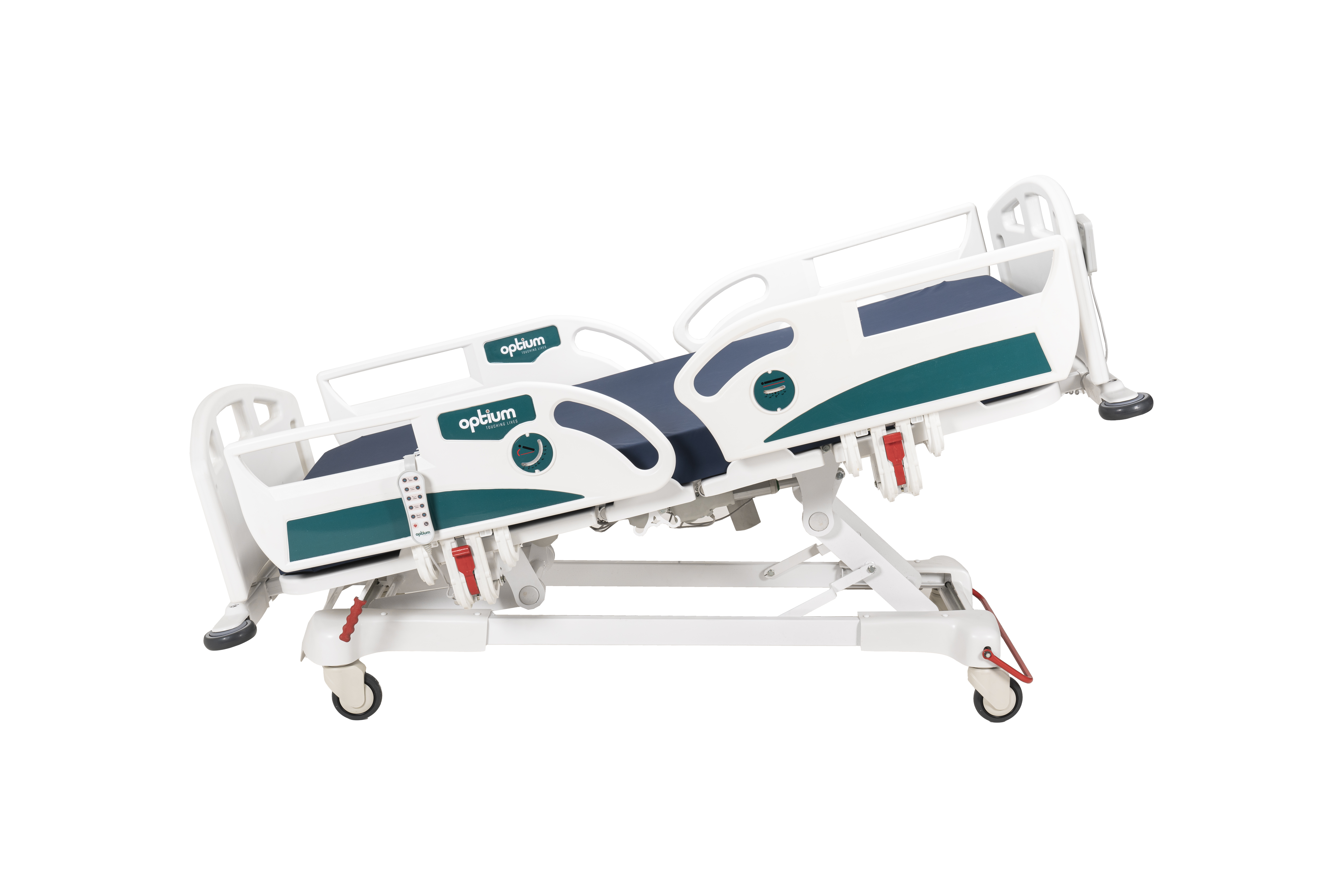

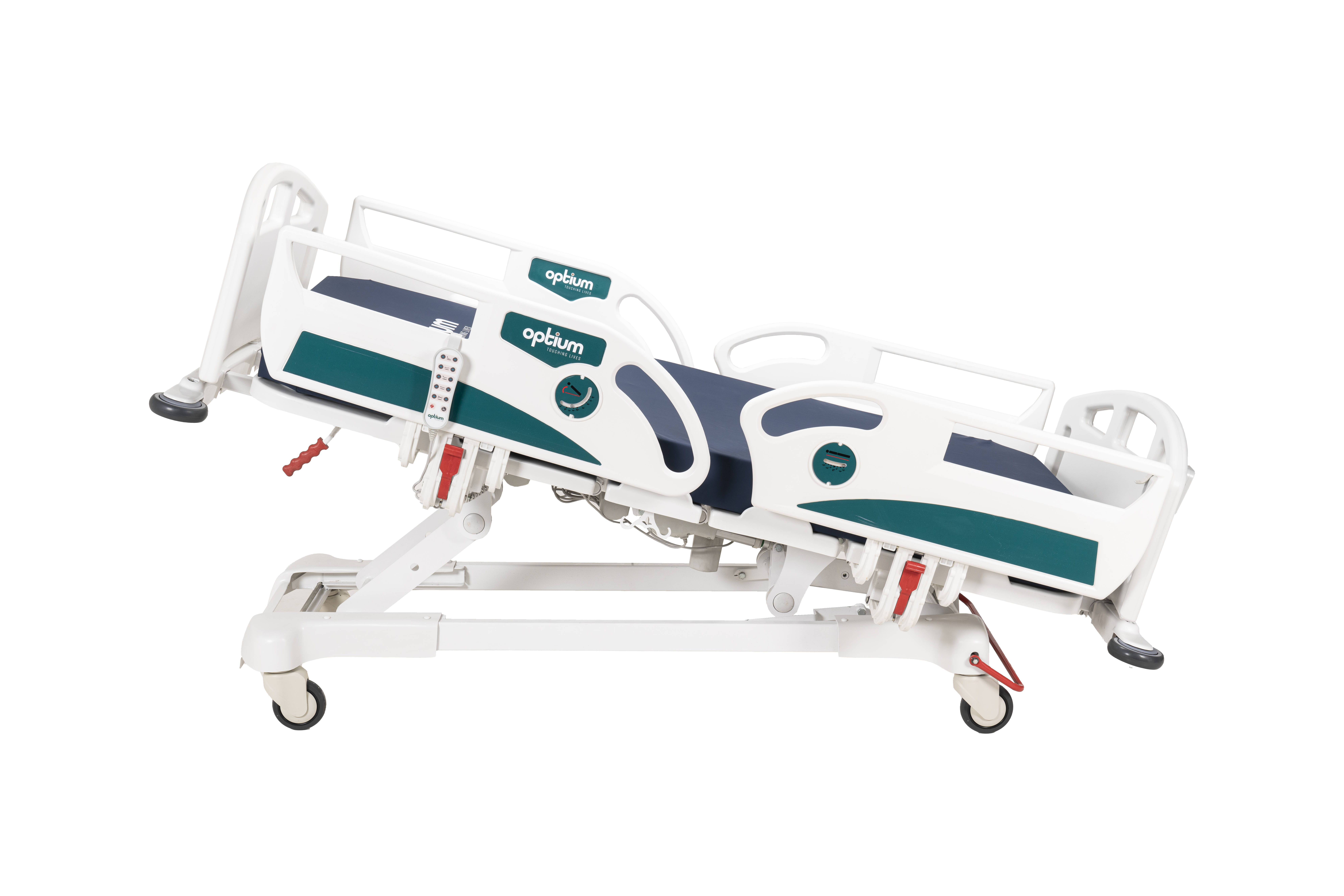

ELECTRONIC ICU BED, 4 MOTORS
- Electrical operated backrest, height and legrest adjustment
- Electrical operated Trendelenburg, Reverse Trendelenburg
- Fowler and vascular position
- Lower leg section adjustment by ratchet
- Auto Regression system on backrest
- Auto contour
- Hygienic design, lockable and tuck away side rails
- Easy removable ABS mattress platform, 4 sections
- Removable head and footboards
- Electrostatic epoxy painted metal frame
- Protective plastic crash bumpers on four corners
- Angle gauge for back
- Angle gauge for Trendelenburg and Reverse Trendelenburg positions
- Activation key at remote control to prevent any undesired positions
- Urine bag hangers on both sides and detachable infusion stand
- Remote control unit
- Food-end advanced Nurse Control Panel
- Central brake castors, 125 mm
- Dual side manual CPR levers at backrest (optional)
- Battery backup (optional)
TECHNICAL DETAILS | ||
---|---|---|
Overall Length: 231 cm | Legrest Angle: 0°-45° | |
Overall Width: 101 cm | Trendelenburg : 0°-18° | |
Mattress Platform: 85×195 cm | Reverse Trendelenburg: 0°-18° | |
Height: 35-82 cm | Castor Diameter: 12,5 cm | |
Backrest Angle: 0°-70° | Safe Working Load: 250 kg | |
—
ELECTRICAL DATA | ||
---|---|---|
Power In | : 1.5A max. At 230V AC 50-60 Hz | |
Electrical Shock Protection | : Class I, Type B | |
Liquid Ingress Protection | : IP66 | |

ACCESSORIES

Central Brake Castors 125 mm

Foot-end Nurse Control Panel

Rechargeable Battery Backup

X-Ray Translucent Backrest with Cassette Holder

Dual Sided Manual CPR at Backrest

Bed Extension

Stationary Headboard

Control Panels Embedded on Side Rails

Urine Bag Basket

Orthopedic Traction System

Lifting Pole

Defibrillator Shelf

Oxygen Cylinder Holder

Nurse Panel Shelf
COLOR CHART

P01

P02

P03

P04

P05

P06

P07
