IN 43 ELECTRONIC ICU BED, 4 MOTORS | Optium

IN 43

Electrical operated backrest, height and legrest adjustment

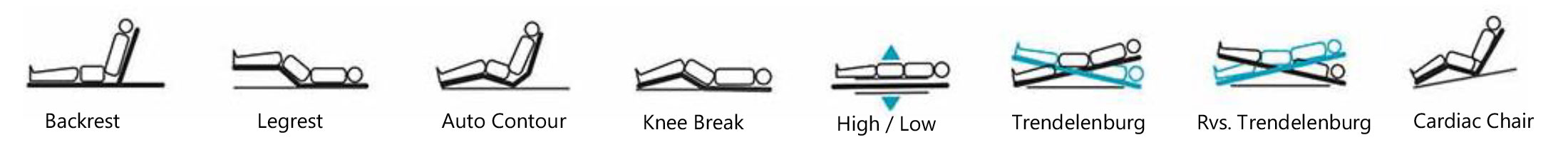

Electrical operated Trendelenburg, Reverse Trendelenburg, fowler and vascular position
Patient handset
Foot end nurse control unit
Control panels embedded on side rails; 2 for patient; 2 for nursing staff
Footrest adjustment by ratchet
Auto-CPR
Auto Regression system on backrest
Auto contour
Hygienic design (PP), lockable and tuck away side rails
Easy removable ABS mattress platform
X-Ray Translucent Backrest with Cassette Holder
Removable head and footboards
Electrostatic epoxy painted metal frame
Height adjustable stainless steel IV pole
Plastic protective crash bumpers on four corners
Central Lockable Castors, 150 mm
Angle indicator for backrest
Angle indicator for Trendelenburg and Reverse Trendelenburg positions
Cardiac chair position with single button
Shock position with single button
Semi-Fowler position with single button
Bed exit position with single button
Examination position with single button
Electronic CPR with single button
Activation key at remote control to prevent any undesired positions
Dual sided manual CPR levers at backrest
Stationary headboard
Urine bag holder
Rechargeable Battery Backup
Bed size extension (optional)
IPX6 standard electronic system

	TECHNICAL DETAILS
	Overall Length: 223 cm	Castor Diameter: 15 cm
	Overall Width: 102 cm	Under Bed Clearance: 15 cm
	Height Range: 42-84 cm	Safe Working Load: 250 kg
	Trendelenburg : 0°-16°	Power In: 1.5A max. At 230V AC 50-60 Hz
	Reverse Trendelenburg: 0°-16°	Electrical Shock Protection: Class I, Type B
	Backrest Angle: 0°-70°	Liquid Ingress Protection: IPX6
	Legrest Angle: 0°-35°	Batteries: 2x 12V Series Connected, sealed, rechargeable, Lead / Acid gel,1.2 amp hrs.
