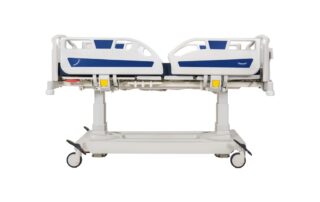

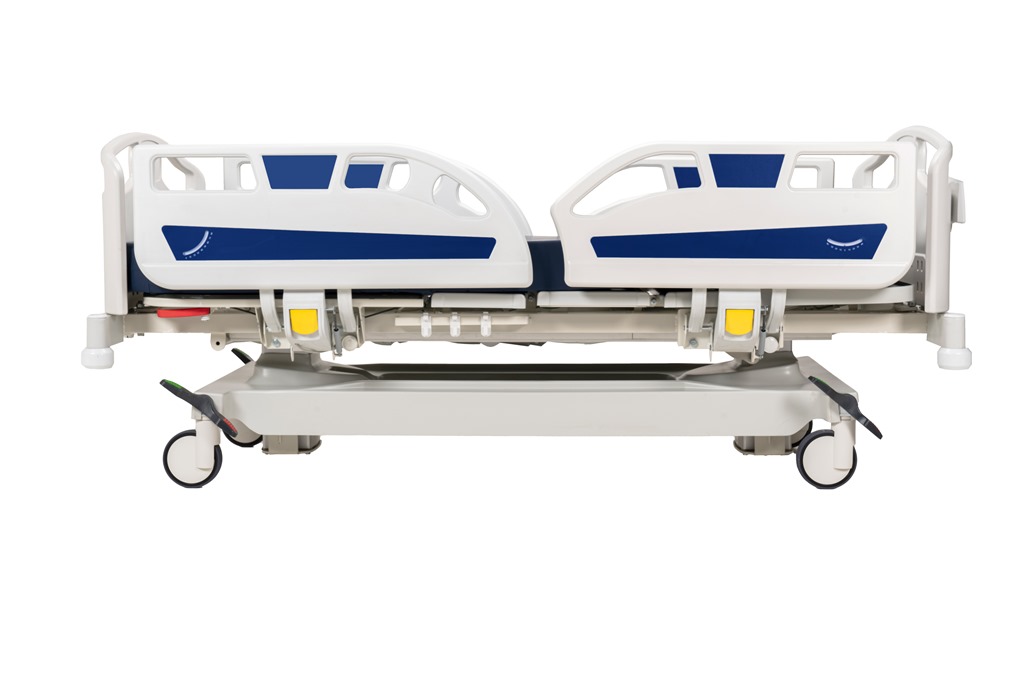

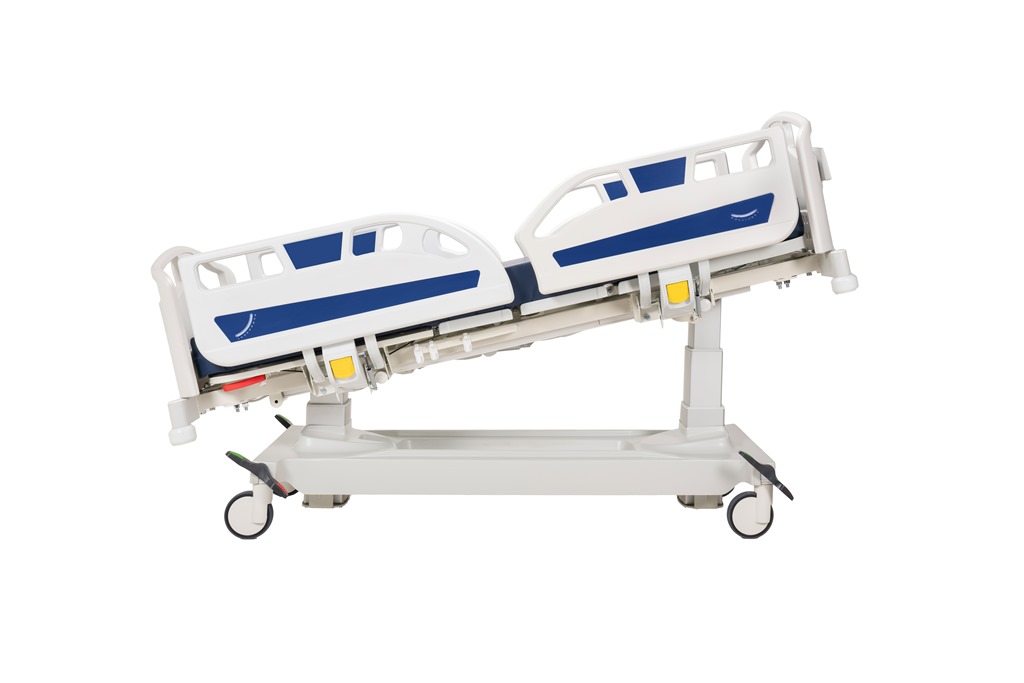

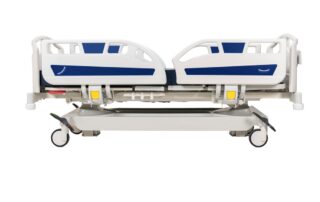

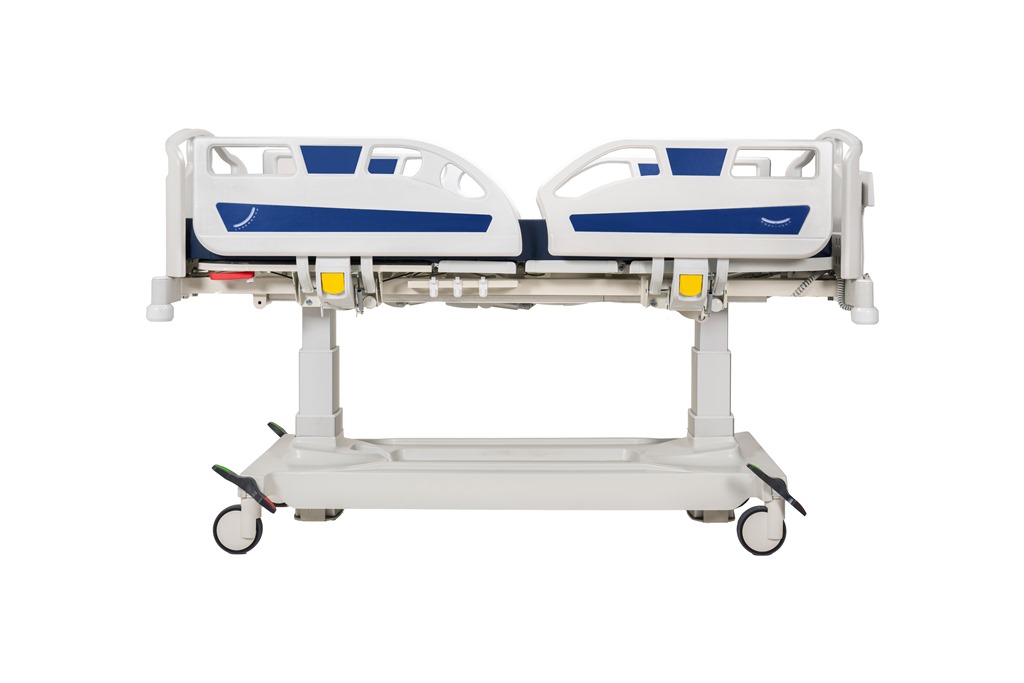

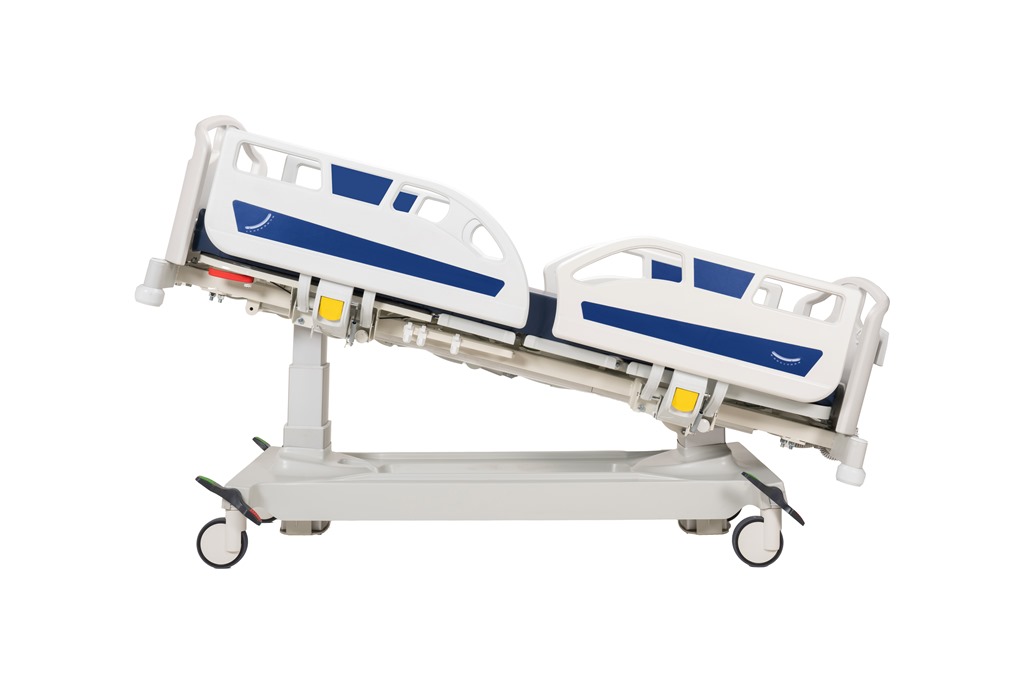

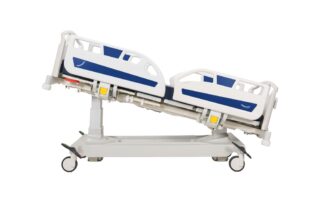

IN 44 ELECTRONIC ICU BED, COLUMN MOTORS | Optium

IN 44

Linak brand Columnar Motors
Electrical operated backrest, height and legrest adjustment
Electrical operated Trendelenburg, Reverse Trendelenburg, fowler and vascular position
Footrest adjustment by ratchet
Remote control for adjusting positions
Auto-CPR
Auto Regression system on backrest
Auto contour
Hygienic design (PP), lockable and tuck away side rails
Easy removable ABS mattress platform
Removable head and footboards
Electrostatic epoxy painted metal frame
Height adjustable stainless steel IV pole
Protective plastic crash bumpers on four corners
Central Lockable Castors, 150 mm
Angle indicator for backrest
Angle indicator for Trendelenburg and reverse Trendelenburg positions
Cardiac chair position
Shock position
Semi-Fowler position
Bed exit position
Examination position
CPR activation with single button
Foot end nurse control panel
Urine bag holder
Activation key at remote control to prevent any undesired positions
Dual sided manual CPR levers at backrest (optional)
X-ray translucent HPL backrest with X-ray cassette holder (optional)
Rechargeable Battery Backup (optional)
Integrated Linak brand weight scale system (optional)
Bed size extension (optional)
IPX6 standard electronic system

	TECHNICAL DETAILS
	Overall Length: 216 cm	Castor Diameter: 15 cm
	Overall Width: 102 cm	Under Bed Clearance: 15 cm
	Height Range: 44-84 cm	Product Weight: 130 kg
	Trendelenburg : 0°-16°	Safe Working Load: 250 kg
	Reverse Trendelenburg: 0°-16°	Power In: 1.5A max. At 230V AC 50-60 Hz
	Backrest Angle: 0°-70°	Electrical Shock Protection: Class I, Type B
	Legrest Angle: 0°-35°	Liquid Ingress Protection: IPX6
