Project Description
TI 22

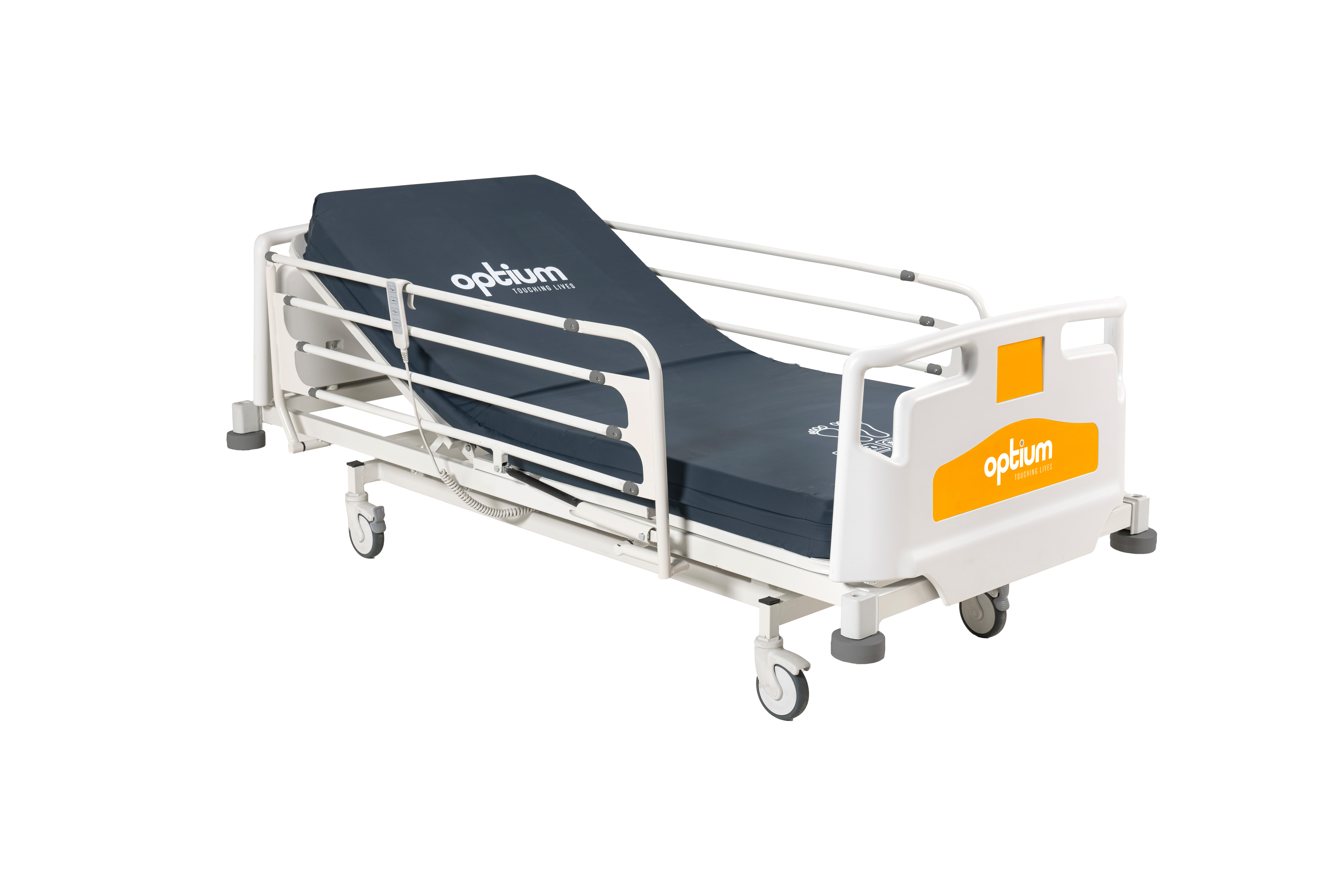

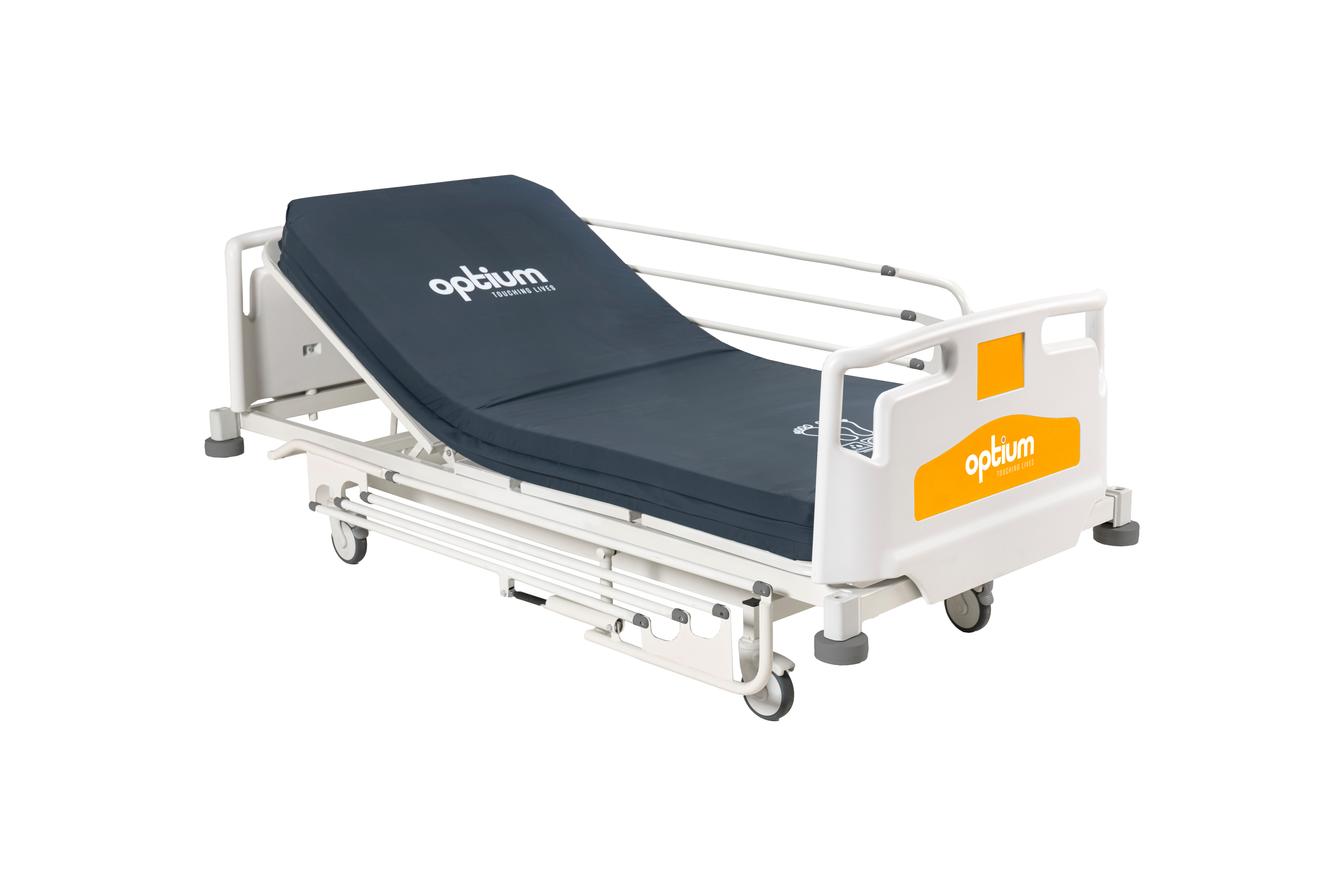

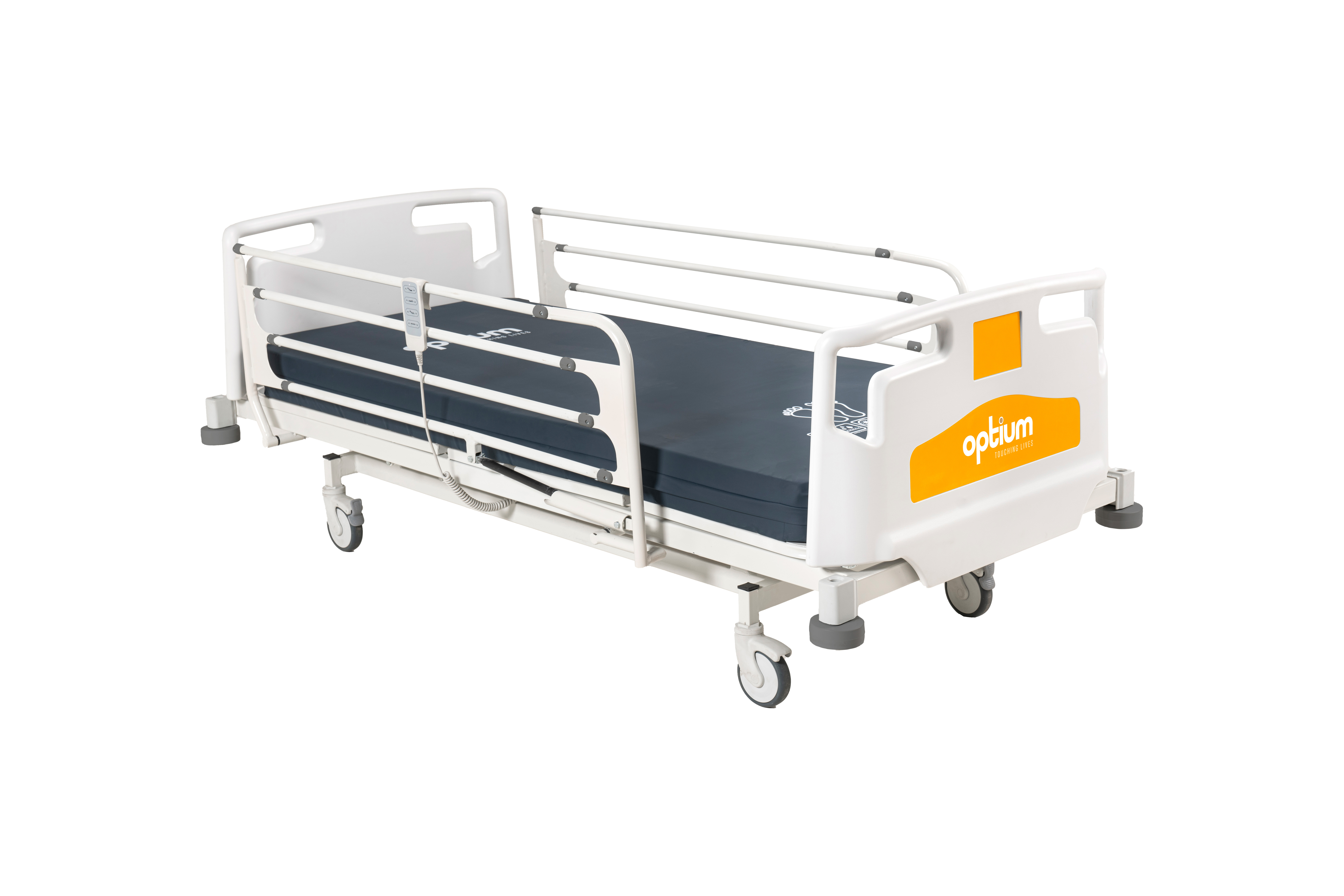

ELECTRONIC PATIENT BED, 2 MOTORS
- Electrical operated backrest and legrest adjustment

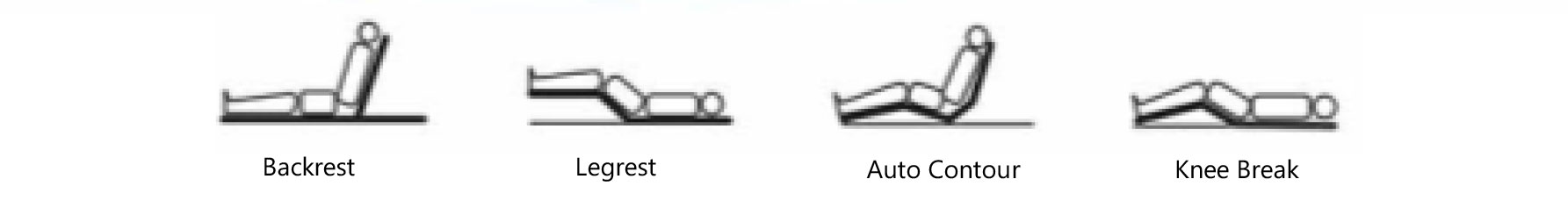

- Fowler and Vascular positions
- Hand remote control
- Lockable and detachable PP head and foot boards
- Auto-contour
- Four strips foldable steel side rails assisted by gas spring
- Auto-regression system for backrest
- Perforated steel sheet mattress platform
- Electrostatic powder coated metal frame
- Footrest adjustment by ratchet
- Height adjustable stainless steel IV pole
- Protective plastic corner bumpers
- 125 mm diagonal lockable castors
- Dual side manual CPR levers at backrest (optional)
- Trendelenburg position by gas spring (optional)
- IP66 standard electronic system
Other Electronic Hospital Bed and Titanium Series hospital bed
TECHNICAL DETAILS | ||
---|---|---|
Overall Length: 215 cm | Under Bed Clearance: 12,5 cm | |
Overall Width: 104 cm | Safe Working Load: 250 kg | |
Height: 45 cm | Power In: 1.5A max. At 230V AC 50-60 Hz | |
Backrest Angle: 0°-70° | Electrical Shock Protection: Class I, Type B | |
Legrest Angle: 0°-35° | Liquid Ingress Protection: IPX6 | |
Castor Diameter: 12,5 cm | ||

ACCESSORIES

Central Brake Castors 150 mm

Foot-end Nurse Control Panel

Rechargeable Battery Backup

X-Ray Translucent Backrest with Cassette Holder

Dual Sided Manual CPR at Backrest

ABS Mattress Platform

Stationary Headboard

Bed Extension

Urine Bag Basket

Orthopedic Traction System

Lifting Pole

Monitor & Defibrillator Shelf

Oxygen Cylinder Holder

Nurse Panel Shelf
COLOR CHART

P01

P02

P03

P04

P05

P06

P07
